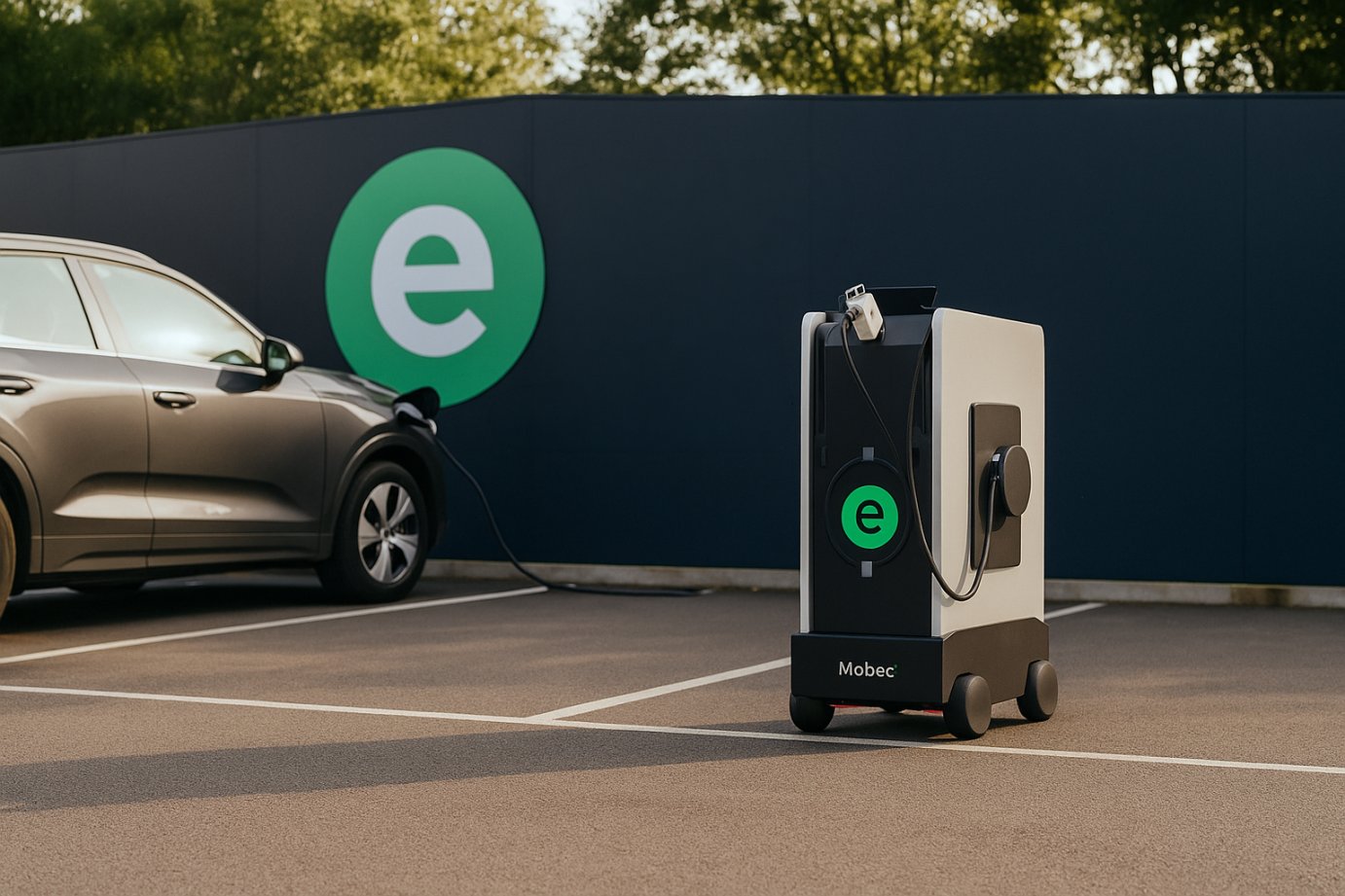

The Mobec MAC 120 (without battery) is Mobec's most powerful movable EV charging product, delivering 120 kW of DC ultra-fast charging capability in a relocatable trolley format. Designed for high-traffic highway corridors, intercity bus terminals, airport parking, and premium hotel valet facilities, the MAC 120 can charge a typical 60 kWh battery EV from 20% to 80% State of Charge (SoC) in under 30 minutes — and a 100 kWh long-range premium EV at the same SoC window in under 40 minutes.
The dual-output architecture allows full 120 kW on a single CCS2 or CHAdeMO gun, or dynamic 60+60 kW split across both guns simultaneously. Thermal-grade liquid-cooled charge cables maintain connector temperature below 45°C at sustained 120 kW delivery, enabling extended fast-charge sessions without the throttling common in air-cooled systems. The patented active cable pre-conditioning system pre-warms coolant before each session in sub-15°C ambient conditions, preventing viscosity-related flow restrictions.
The modular power architecture (4×30 kW power modules) provides N+1 redundancy — a single module failure reduces output to 90 kW rather than causing total unit downtime, maximising uptime SLA compliance. Individual modules are hot-swappable in under 20 minutes by a certified technician. The 10-inch IPS display with anti-glare coating and 1000 nit brightness is fully readable in direct sunlight. Payment: RFID ISO 14443A/B, NFC ISO 18092, QR code, UPI, and CAN bus-integrated fleet card. OCPP 2.0.1 with ISO 15118-2 PnC and ISO 15118-20 V2X firmware hooks. CAN bus interface for third-party fleet telematics integration. Connectivity: 4G LTE Cat-16, Wi-Fi 6, Ethernet, and optional fibre SFP port. Surge protection to 6 kV. IP54, IK10. Requires 3-phase 415 V / 200 A dedicated feed. BIS, CE, IEC 62196-3, and UL 2202 certified.
Input Voltage
415 ± 10% (3P+N+PE) V AC
Output Power Capacity
120 kWh
Output Voltage
200-1000 V DC
Number of Outputs
2 Nos
Output Connector
CCS 2
Efficiency
94 %
Operating Temperature
-30 to 50 °C
Storage Temperature
-40 to 70 °C
Cooling Method
Forced Air Cooling
Humidity
5% to 95%, non-condensing
Display Screen
7" TFT LCD Touch Screen
Visual Indication
Using LED and Screen, Error Indicator, State of Charge
User Authentication
Plug and Charge / RFID Card / CMS (optional)
Push Button
Emergency Stop (Mushroom Red)
Protection
Over Voltage, Under Voltage, Over Temperature, Over Load Protection, Leakage and Lightning Protection
Communication Standard
IEC 62196-3 (CCS2)
User Communication
OCPP 1.6 / Using mobile application / QR Code / RFID Card / Plug & Play
Charging Cable Length
5 Meter
IP Rating
IP 54
